Key Features

31.5" 16:9 IPS Black Panel
Thunderbolt 3 | HDMI | DisplayPort
UHD 4K 3840 x 2160 at 60 Hz
5 ms Response Time (GtG)
2000:1 Static Contrast Ratio
400 nits Brightness
178/178° Viewing Angles
1.07 Billion Colors with HDR10
99% sRGB & Rec. 709 and 98% DCI-P3
USB 3.2 Gen 2 Hub | Speakers | 3.5mm

Overview

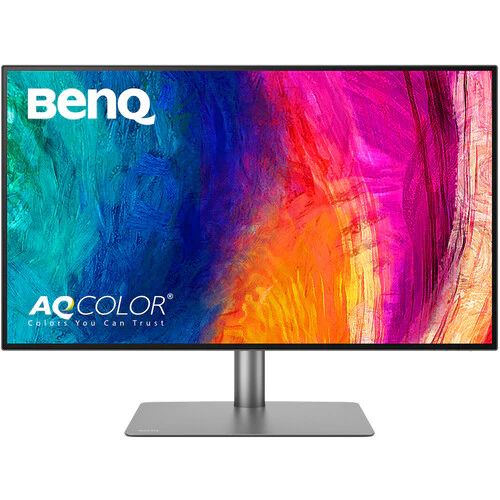

The BenQ PD3225U DesignVue Designer 31.5" 16:9 HDR 4K IPS Monitor has been built to satisfy designers' needs for color performance, with support for 99% of the sRGB and Rec. 709 color gamuts, 98% of the DCI-P3 color gamut, HDR10, and DisplayHDR 400. Driven by BenQ's AQCOLOR technology and an Ultra HD 4K resolution of 3840 x 2160 with a 60 Hz refresh rate, the PD3225U helps deliver improved accuracy and productivity tailored for specific tastes. It does this using three special modes—CAD/CAM, Animation, and DualView—each of which is tailored for different scenarios, allowing users in different fields to achieve similar results.

The PD3225U features In-Plane Black technology, an anti-glare panel coating, 10-bit support for 1.07 billion colors, a widescreen 16:9 aspect ratio, a static contrast ratio of 2000:1, a brightness of 400 nits, 140 ppi, and a 5 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. There are also two HDMI 2.0 inputs, one DisplayPort 1.4 input, and two Thunderbolt 3 ports that each support DP Alt mode for daisy-chaining multiple displays and data transfers. One Thunderbolt 3 port supports device charging up to 85W, while the other supports it up to 15W. Additional connectivity is achieved using one USB-C 3.2 Gen 2 port (data transfers only), three USB-A 3.2 Gen 2 ports, and one USB-B 3.2 Gen 1. Audio can be output using the dual integrated 2.5W speakers or the 3.5mm headphone jack.

BenQ's PD3225U also supports HDCP 2.2, Flicker-Free technology, Low Blue Light technology, Picture in Picture (PiP), Picture by Picture (PbP), and more. To further help improve viewing and accessibility, it features a vertical tilt of -5 to 20°, a left/right swivel of ±30°, a clockwise/counterclockwise pivot of 90°, a height adjustment of 5.91", and a 100 x 100mm VESA mount.

Key Specs

Display

Display Size	31.5"
Panel Type	IPS-Type LCD
Aspect Ratio	16:9
Native Resolution	3840 x 2160
Maximum Brightness	400 nits / cd/m² (Sustained in SDR Mode) 400 nits / cd/m² (Peak in HDR Mode)
HDR Support	Yes: HDR10
Contrast Ratio	2000:1
Response Time	5 ms (GtG)
Refresh Rate	60 Hz
Variable Refresh Technology	No
Color Support	1.07 Billion Colors (10-Bit)
Color Gamut	99% sRGB 99% Rec. 709 98% DCI-P3
Viewing Angle (H x V)	178 x 178°
Curved Display	No
Finish	Anti-Glare

Surface

Touchscreen

Connectivity

A/V Inputs	2x HDMI 2.0 1x DisplayPort 1.4
A/V Outputs	1x 1/8" / 3.5 mm (Headphone)
HDCP Support	Yes: Version 2.2
USB I/O	1x USB-C (Thunderbolt 3) with USB PD 85 W 1x USB-C (Thunderbolt 3) 2x USB-A 3.1/3.2 Gen 2 1x USB-B 3.0 / 3.1/3.2 Gen 1 1x USB-C 3.1/3.2 Gen 2 1x USB-A 3.1/3.2 Gen 2
Multi-Input Support (PIP/PBP)	Yes: Picture-in-Picture (PIP), Picture-by-Picture (PBP)

Speaker

Built-In Speakers

Yes: 2x 2.5 W

Electrical

Power Consumption	Maximum: 230.0 W Typical: 32.0 W Standby: 0.5 W
Input Power	100 to 240 VAC, 60 / 50 Hz
Power Adapter Type	Internal

General

Operating Conditions	32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C at 10 to 60% Humidity
Certifications	TUV Flicker Free, TUV Low Blue Light
Adjustments	Height 5.91" / 150 mm Tilt 25° (-5 to 20°) Rotation 90° Swivel 60° (-30 to 30°)
VESA Mounting-Hole Pattern	100 x 100 mm
Lock Slot	Yes: Kensington
Dimensions	28.1 x 24.7 x 10.7" / 713.7 x 627.4 x 271.8 mm (with Stand) 28.1 x 16.2 x 2.9" / 714.8 x 411.4 x 74.8 mm (without Stand)
Weight	18.1 lb / 8.2 kg (with Stand) 14.6 lb / 6.6 kg (without Stand)

What's in the Box:

BenQ PD3225U DesignVue Designer 31.5" 16:9 HDR 4K IPS Monitor
Monitor Stand
Monitor Base
Back Cover
DisplayPort Cable
HDMI Cable
Thunderbolt 3 Cable
USB-B to USB-A Cable
Hotkey Puck G2
Power Cable
Limited 1-Year Manufacturer Warranty
