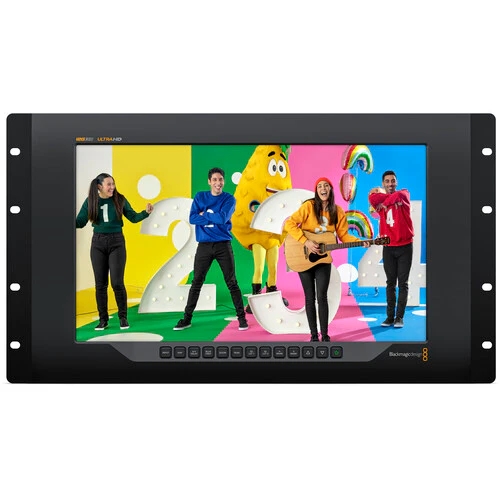

Blackmagic Design SmartView 4K G3 15.6" DCI 4K Broadcast Monitor with SMPTE 2110

Product image 1
1 / 3

Blackmagic Design SmartView 4K G3 15.6" DCI 4K Broadcast Monitor with SMPTE 2110

Key Features
  • 15.6" 3840 x 2160 Active-Matrix TFT LCD
  • Supports up to DCI 4K60 Video
  • SMPTE 2110 IP In via RJ45, Optical Fiber
  • 2 x Multi-Rate 12G-SDI Inputs
  • 1 x Optical Fiber SDI Socket
  • 12G-SDI Loop-Through Output, Tally Input
  • SD/HD Upscaling, Dual 3D LUT Support
  • Peaking, Zoom & Adjustable Markers
  • H/V Delay, Blue Only & Frame Markers
  • Front Panel & Ethernet Control

Overview

The Blackmagic Design SmartView 4K G3 is a professional 15.6" TFT LCD monitor that features built-in optical and copper SMPTE‑2110 IP video connections so you can connect directly to IP-based broadcast systems. It has a native resolution of 3840 x 2160 and also offers two multi-rate 12G-SDI inputs for connecting to a range of pro video equipment. The inputs automatically switch between SD, HD, and 4K formats, including up to DCI 4K60. Its design features a lightweight machined aluminum chassis and a full-resolution UHD 4K LCD screen. The on-screen overlays include focus peaking, framing guides, safe area, and more. It also has built-in 3D LUTs for adding creative looks, converting log film gamma, or handling custom HDR profiles.



Key Specs

Display
Panel Type
TFT LCD
Display Size
15.6" / 39.6 cm
Native Resolution
3840 x 2160
Aspect Ratio
16:9
Touchscreen
No
Contrast Ratio
1000:1
Color Support
16.7 Million Colors (8-Bit)
HDR Support
No
Color Gamut
100% Rec. 709
100% NTSC
LUT Support
Yes
Image Controls
Blue Only, Focus Peaking, H/V Delay, Pixel Zoom
Inputs/Outputs
Video I/O
2x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
1x RJ45 (HDBaseT) Input
Embedded Audio
SDI: 16-Channel
Audio I/O
No
Built-In Speaker
No
Power I/O
1x Barrel Input
1x IEC Input
Other I/O
1x RJ45 (LAN) [Shared with SMPTE-2110 IP Video Input]
1x DE-9/DB-9 (Tally)
1x Mini-USB 2.0
Expansion Slots
1x SFP+ Slot
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
SDI (4:4:4/4:2:2)
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
DCI 2K PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC: 59.94
PAL: 50
Power
Input Power
12 to 15 VDC
90 to 240 VAC, 50 / 60 Hz
Battery
No
Power Consumption
24 W (Maximum)
Mounting
Rack Form Factor
6 U
General
Environmental Resistance
No
Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C
Material of Construction
Metal
Dimensions
18.98 x 10.47 x 2.75" / 48.21 x 26.59 x 6.96 cm
Weight
7.94 lb / 3.60 kg



What's in the Box:

  • Blackmagic Design SmartView 4K G3 15.6" DCI 4K Broadcast Monitor with SMPTE 2110
  • Limited 1-Year Manufacturer Warranty



Key Features
  • 15.6" 3840 x 2160 Active-Matrix TFT LCD
  • Supports up to DCI 4K60 Video
  • SMPTE 2110 IP In via RJ45, Optical Fiber
  • 2 x Multi-Rate 12G-SDI Inputs
  • 1 x Optical Fiber SDI Socket
  • 12G-SDI Loop-Through Output, Tally Input
  • SD/HD Upscaling, Dual 3D LUT Support
  • Peaking, Zoom & Adjustable Markers
  • H/V Delay, Blue Only & Frame Markers
  • Front Panel & Ethernet Control

Overview

The Blackmagic Design SmartView 4K G3 is a professional 15.6" TFT LCD monitor that features built-in optical and copper SMPTE‑2110 IP video connections so you can connect directly to IP-based broadcast systems. It has a native resolution of 3840 x 2160 and also offers two multi-rate 12G-SDI inputs for connecting to a range of pro video equipment. The inputs automatically switch between SD, HD, and 4K formats, including up to DCI 4K60. Its design features a lightweight machined aluminum chassis and a full-resolution UHD 4K LCD screen. The on-screen overlays include focus peaking, framing guides, safe area, and more. It also has built-in 3D LUTs for adding creative looks, converting log film gamma, or handling custom HDR profiles.



Key Specs

Display
Panel Type
TFT LCD
Display Size
15.6" / 39.6 cm
Native Resolution
3840 x 2160
Aspect Ratio
16:9
Touchscreen
No
Contrast Ratio
1000:1
Color Support
16.7 Million Colors (8-Bit)
HDR Support
No
Color Gamut
100% Rec. 709
100% NTSC
LUT Support
Yes
Image Controls
Blue Only, Focus Peaking, H/V Delay, Pixel Zoom
Inputs/Outputs
Video I/O
2x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
1x RJ45 (HDBaseT) Input
Embedded Audio
SDI: 16-Channel
Audio I/O
No
Built-In Speaker
No
Power I/O
1x Barrel Input
1x IEC Input
Other I/O
1x RJ45 (LAN) [Shared with SMPTE-2110 IP Video Input]
1x DE-9/DB-9 (Tally)
1x Mini-USB 2.0
Expansion Slots
1x SFP+ Slot
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
SDI (4:4:4/4:2:2)
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
DCI 2K PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC: 59.94
PAL: 50
Power
Input Power
12 to 15 VDC
90 to 240 VAC, 50 / 60 Hz
Battery
No
Power Consumption
24 W (Maximum)
Mounting
Rack Form Factor
6 U
General
Environmental Resistance
No
Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C
Material of Construction
Metal
Dimensions
18.98 x 10.47 x 2.75" / 48.21 x 26.59 x 6.96 cm
Weight
7.94 lb / 3.60 kg



What's in the Box:

  • Blackmagic Design SmartView 4K G3 15.6" DCI 4K Broadcast Monitor with SMPTE 2110
  • Limited 1-Year Manufacturer Warranty
