• Up to 40 Simultaneous Input Channels
• 16 Midas PRO Microphone Preamplifiers
• 25 Phase-Coherent Mix Buses
• 5" Full-Color TFT Display Screen
• 8 Stereo Signal Processing FX Engines
• 17 Midas PRO Motorized Faders
• 192 kHz ADC and DAC Converters
• AES50 Networking Allows 96-In and 96-Out
• 8 DCA and 6 Mute Groups
• DN32-LIVE SD/SDHC and USB 2.0 Module



Overview

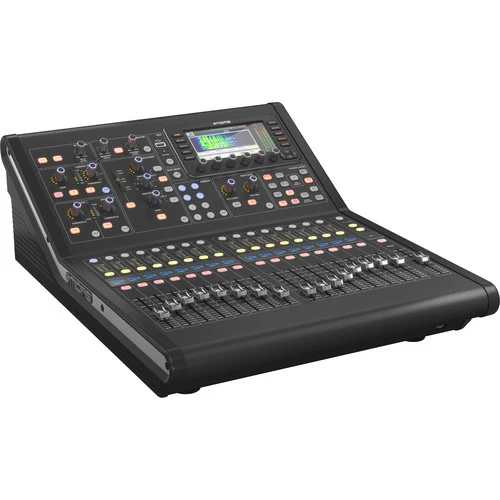

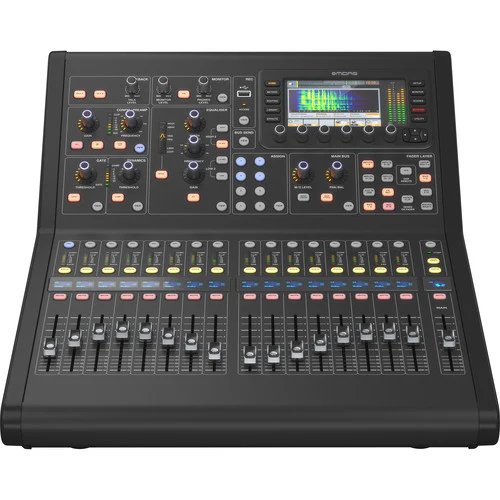

Designed for live and studio use, the Midas M32R-LIVE is a 40-input digital mixing console, well suited for professional audio applications such as touring sound, A/V, club installs and more. The mixer features 16 Midas PRO microphone preamplifiers, which are used in the industry-standard MIDAS XL4 and HERITAGE 3000 consoles. In addition, the console features 25 time-aligned and phase-coherent mix buses and is fitted with 17 motorized faders that are rated for 1 million life cycles.



Key Specs

Max I/O Capacity	40x Input / 25x Output
Number of Analog Input Channels	16 (16 Mono)
Number of Mic Preamps	16
Number of Analog Output Channels	8
Faders & Level Adjustment	17 Fader(Touch Sensitive)
Built-In Effects	8x Stereo 16x Mono

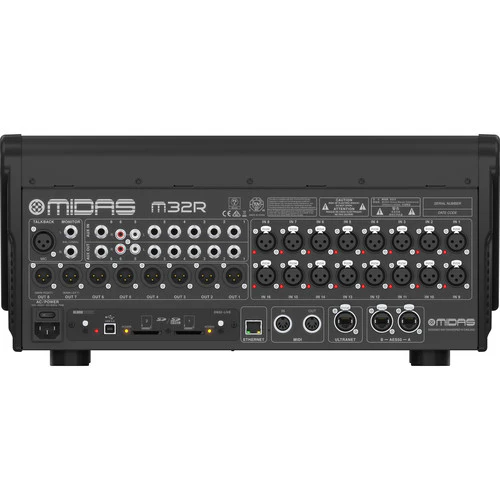

Analog Inputs	1x Stereo RCA Aux Input 1x XLR Talkback Input 16x XLR Mic Input 6x 1/4" TRS Balanced Aux Input Show Less
Analog Outputs	1x 1/4" Headphone Output 1x Stereo RCA Aux Output 2x XLR Monitor Output 2x 1/4" Monitor Output 6x 1/4" Aux Output 8x XLR Main/Bus Output Show Less
Digital I/O	1x RJ45 (Control) 1x etherCON Ultranet 2x etherCON AES50/SuperMAC
USB I/O	USB-A USB-B
Wireless	No
Rack Mountable	Yes

Dimensions	18.8 x 24.3 x 8.2" / 47.8 x 61.7 x 20.8 cm
Weight	31.5 lb / 14.3 kg



What's in the Box:

• Midas M32R LIVE Digital Console for Live Performance and Studio Recording
• Power Cord
• Set Rackmount Brackets
• Limited 1-Year Manufacturer Warranty
