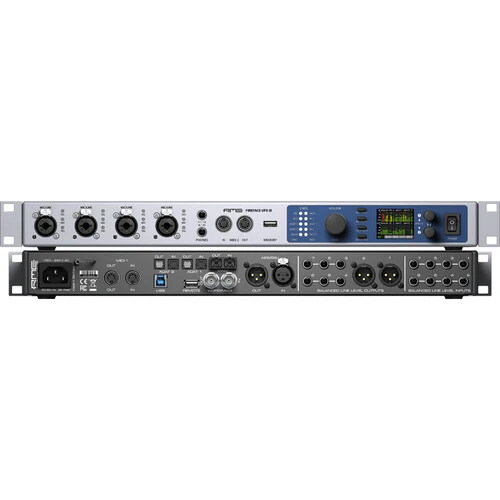

RME Fireface UFX III 188-Channel Audio Interface with USB 3.0

Product image 1
1 / 4

RME Fireface UFX III 188-Channel Audio Interface with USB 3.0

Key Features

  • For Recording Studios and Touring
  • Up to 24-Bit / 192 kHz Sampling
  • 188-Channel I/O: 94 Inputs / 94 Outputs
  • MADI, AES3, 2 x ADAT Digital I/O
  • USB 3.0 Host Connection, DURec Support
  • 4 x XLR-1/4" Combo Preamps
  • Balanced 1/4" Line I/O, XLR 3-Pin Outs
  • BNC Word Clock/MADI, 5-Pin DIN MIDI I/O
  • Room EQ for Dolby Atmos Compatibility
  • Dual Headphone Outputs



Overview

Every professional multitrack studio needs a flexible centerpiece, and that's why RME has introduced the Fireface UFX III, a 188-channel, 1 RU audio interface with a blistering maximum sample rate of 24-bit / 192 kHz and wide-ranging, versatile I/O, including 128-channel MADI, dual optical ADAT I/O, XLR AES3 connections, and a future-proof USB 3.0 host



General

Form Factor
Rackmount
Display
1x Color LCD
Channels of I/O
Analog / Digital:
94 Inputs / 94 Outputs
Number of Analog Input Channels
12
Number of Analog Outputs
10
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Built-In Microphone
No
Input Level Adjustment
1x Knob



Connectivity

Analog Audio I/O
4x Combo XLR-1/4" 3-Pin Mic/Line Input (Front Panel)
8x 1/4" TRS Balanced Line Input
2x XLR 3-Pin Balanced Line Output
6x 1/4" TRS Balanced Line Output
2x 1/4" TRS Headphone Output (Front Panel)
Phantom Power
48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O
1x SC-Plug Optical MADI Input
2x TOSLINK Optical ADAT Input
1x XLR 3-Pin AES3 Input
1x SC-Plug Optical MADI Output
2x TOSLINK Optical ADAT Output
1x XLR 3-Pin AES3 Output
1x BNC Coaxial MADI Output (Word Clock Support)
Host Connection Protocol
USB 3.0 / 3.1/3.2 Gen 1
USB (Non-Host)
1x USB-A (Remote)
1x USB-A (External Storage, Update)
Sync I/O
1x BNC Word Clock Input
1x BNC Word Clock Output (Shared with MADI)
Network I/O
No
MIDI I/O
2x DIN 5-Pin Input
2x DIN 5-Pin Output
Expansion Slots
No



Digital Audio

Sample Rates
Up to 192 kHz
Bit Depths
24-Bit
Sync Sources
ADAT, MADI, Word Clock



Audio Storage & Playback

Media/Memory Card Slot
No



Compatibility

OS Compatibility
Windows
macOS
Included Software
No
Included Plug-Ins
No
Mobile App Compatible
No
Mobile Device Compatibility
No
Required Hardware
USB 3.0 / 3.1/3.2 Gen 1 Port, USB Cable



Power

Power Requirements
AC Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
38 W



Physical

Rackmount Size
1 RU
Certifications
CE, FCC, WEEE
Dimensions
19" / 48.3 cm



Packaging Info

Package Weight
11.475 lb
Box Dimensions (LxWxH)
22.1 x 12.2 x 4.6"



What's in the Box:

RME Fireface UFX III 188-Channel Audio Interface with USB 3.0
Limited 2-Year Manufacturer Warranty

Key Features

  • For Recording Studios and Touring
  • Up to 24-Bit / 192 kHz Sampling
  • 188-Channel I/O: 94 Inputs / 94 Outputs
  • MADI, AES3, 2 x ADAT Digital I/O
  • USB 3.0 Host Connection, DURec Support
  • 4 x XLR-1/4" Combo Preamps
  • Balanced 1/4" Line I/O, XLR 3-Pin Outs
  • BNC Word Clock/MADI, 5-Pin DIN MIDI I/O
  • Room EQ for Dolby Atmos Compatibility
  • Dual Headphone Outputs



Overview

Every professional multitrack studio needs a flexible centerpiece, and that's why RME has introduced the Fireface UFX III, a 188-channel, 1 RU audio interface with a blistering maximum sample rate of 24-bit / 192 kHz and wide-ranging, versatile I/O, including 128-channel MADI, dual optical ADAT I/O, XLR AES3 connections, and a future-proof USB 3.0 host



General

Form Factor
Rackmount
Display
1x Color LCD
Channels of I/O
Analog / Digital:
94 Inputs / 94 Outputs
Number of Analog Input Channels
12
Number of Analog Outputs
10
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Built-In Microphone
No
Input Level Adjustment
1x Knob



Connectivity

Analog Audio I/O
4x Combo XLR-1/4" 3-Pin Mic/Line Input (Front Panel)
8x 1/4" TRS Balanced Line Input
2x XLR 3-Pin Balanced Line Output
6x 1/4" TRS Balanced Line Output
2x 1/4" TRS Headphone Output (Front Panel)
Phantom Power
48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O
1x SC-Plug Optical MADI Input
2x TOSLINK Optical ADAT Input
1x XLR 3-Pin AES3 Input
1x SC-Plug Optical MADI Output
2x TOSLINK Optical ADAT Output
1x XLR 3-Pin AES3 Output
1x BNC Coaxial MADI Output (Word Clock Support)
Host Connection Protocol
USB 3.0 / 3.1/3.2 Gen 1
USB (Non-Host)
1x USB-A (Remote)
1x USB-A (External Storage, Update)
Sync I/O
1x BNC Word Clock Input
1x BNC Word Clock Output (Shared with MADI)
Network I/O
No
MIDI I/O
2x DIN 5-Pin Input
2x DIN 5-Pin Output
Expansion Slots
No



Digital Audio

Sample Rates
Up to 192 kHz
Bit Depths
24-Bit
Sync Sources
ADAT, MADI, Word Clock



Audio Storage & Playback

Media/Memory Card Slot
No



Compatibility

OS Compatibility
Windows
macOS
Included Software
No
Included Plug-Ins
No
Mobile App Compatible
No
Mobile Device Compatibility
No
Required Hardware
USB 3.0 / 3.1/3.2 Gen 1 Port, USB Cable



Power

Power Requirements
AC Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
38 W



Physical

Rackmount Size
1 RU
Certifications
CE, FCC, WEEE
Dimensions
19" / 48.3 cm



Packaging Info

Package Weight
11.475 lb
Box Dimensions (LxWxH)
22.1 x 12.2 x 4.6"



What's in the Box:

RME Fireface UFX III 188-Channel Audio Interface with USB 3.0
Limited 2-Year Manufacturer Warranty

$1,143.54

Original: $3,267.26

-65%
RME Fireface UFX III 188-Channel Audio Interface with USB 3.0—

$3,267.26

$1,143.54
